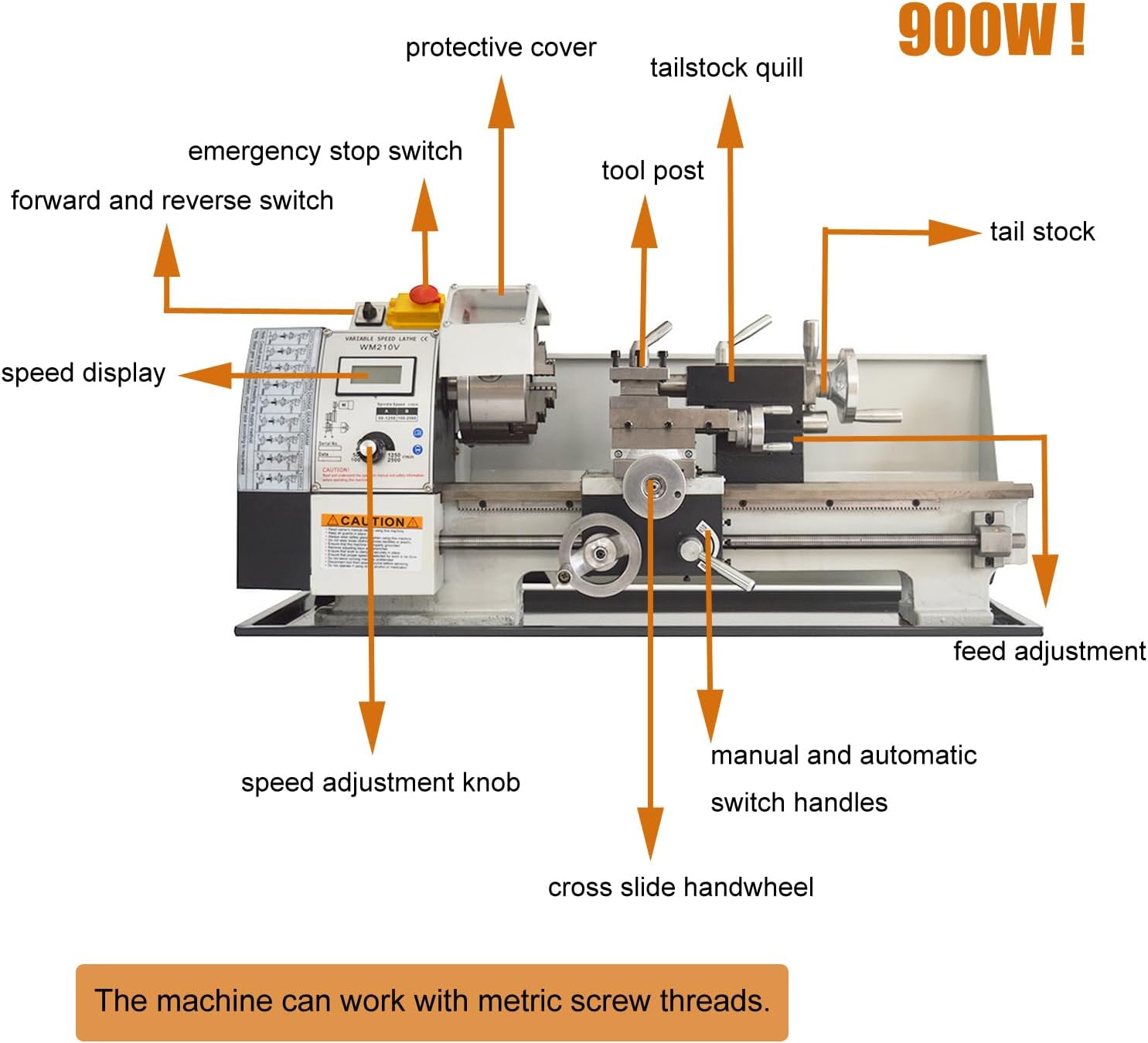

WM210V Precision Metal Bench Lathe Metalworking Lathe Bench Lathe Metal Bench Miniature Lathe Milling Machine Variable Speed Lathe 110V

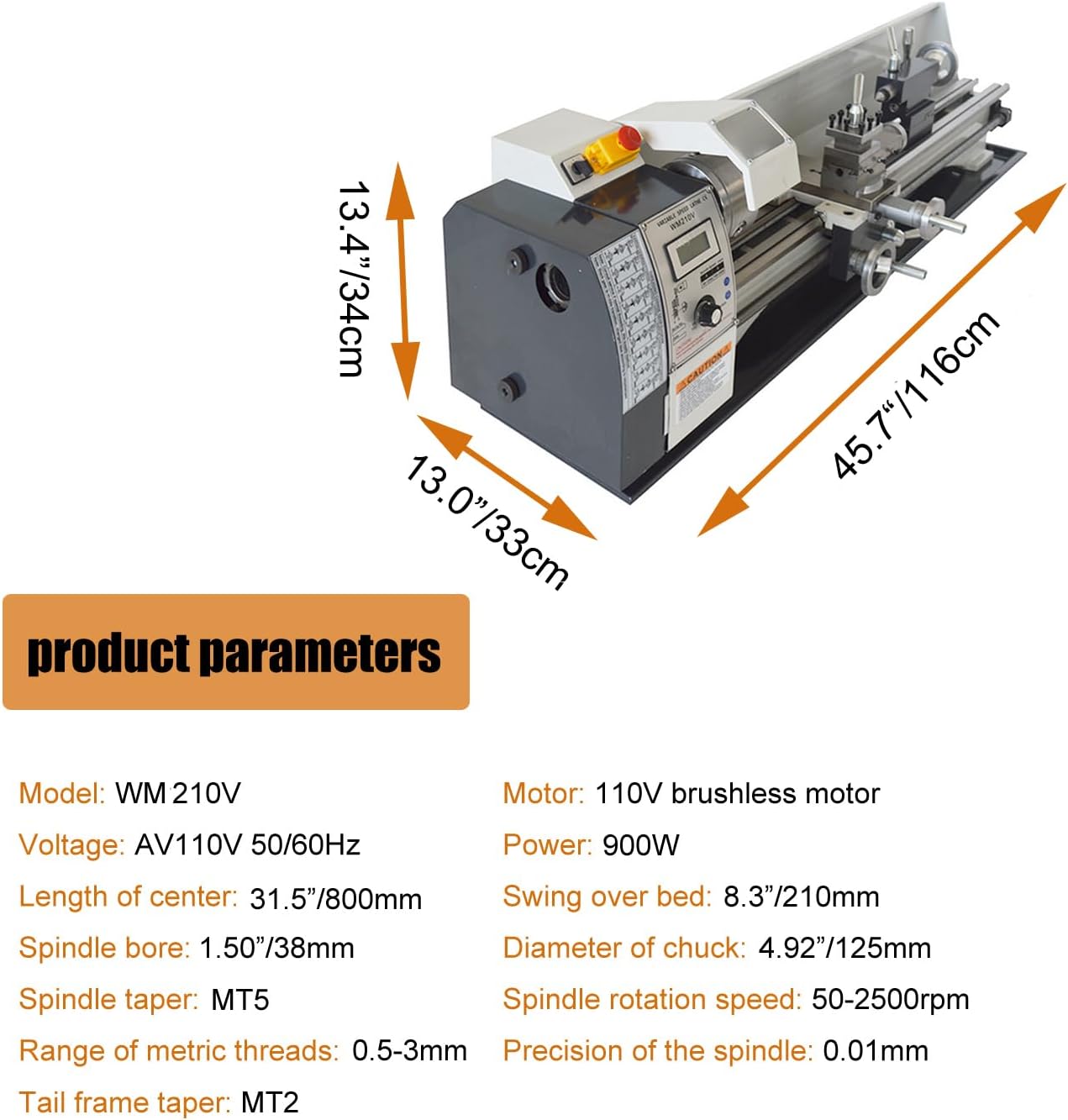

Model: WM210V Motor: 110V brushless motor Voltage: AC110V 50/60Hz Power: 900W Length of center: 31.5"/800mm Swing Over Bed: 8.3"/210mm Rotary diameter of tool rest: 5.51"/140mm Spindle bore: 1.50"/38mm Diameter of chuck: 4.92"/125mm Spindle taper: MT5 Spindle rotation speed: 50-2500rpm Range of metric threads: 0.5-3mm Precision of the spindle: 0.01mm Maximum stroke of tool rest plate: 2.16"/55mm Maximum stroke of middle plate: 2.95"/75mm Maximum stroke of bottom plate: 26.8"/680mm Maximum stroke of tailstock sleeve: 2.36"/60mm Tail frame taper: MT2 Note: The machine itself contains gears of size 84, 80, 80, and 33 The machine can work with metric threads.

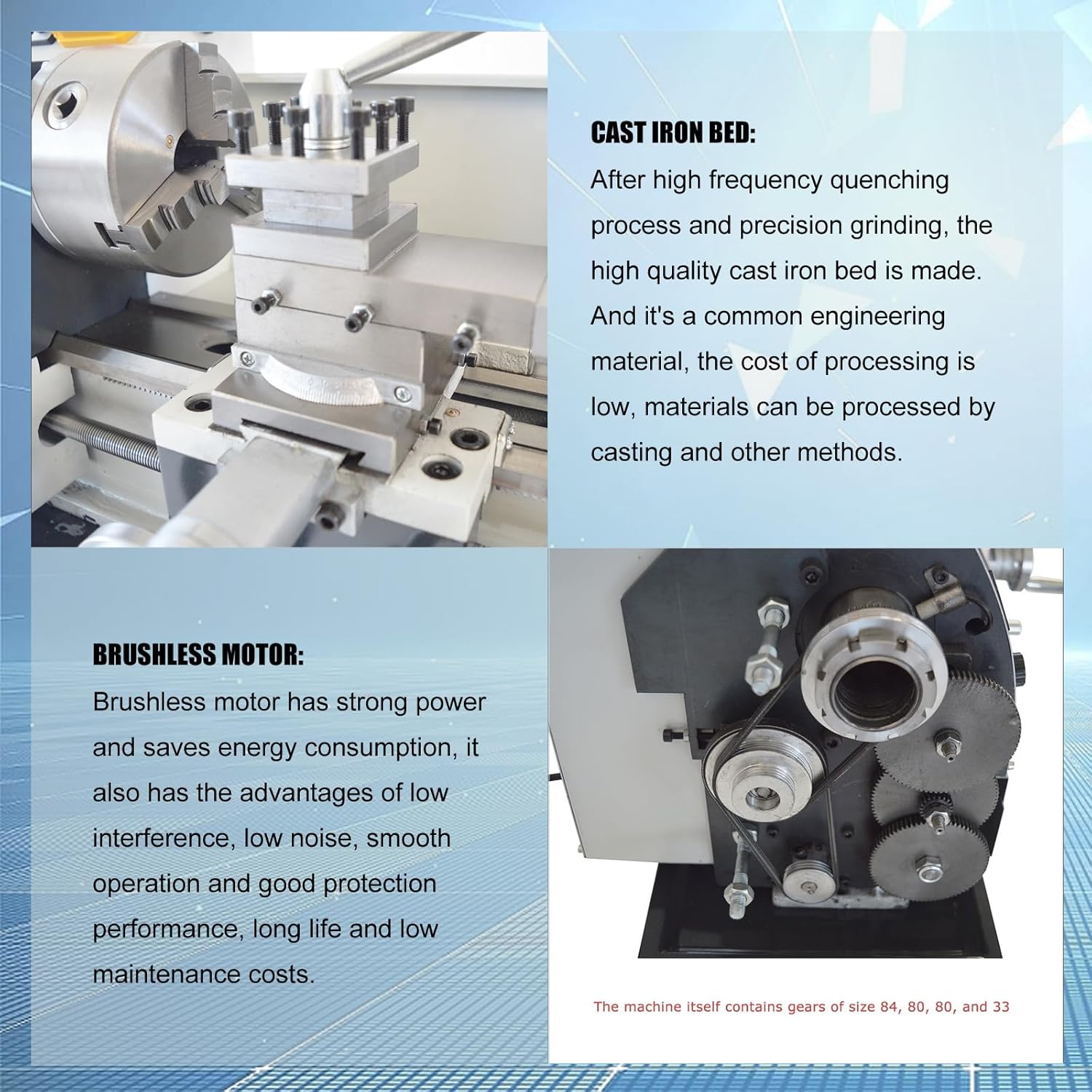

• CAST IRON BED: After high frequency quenching process and precision grinding, the high quality cast iron bed is made. And it's a common engineering material, the cost of processing is low, materials can be processed by casting and other methods.
• BRUSHLESS MOTOR:Brushless motor has strong power and saves energy consumption, it also has the advantages of low interference, low noise, smooth operation and good protection performance, long life and low maintenance costs.
• ADJUSTABLE SPEED: The spindle rotation speed is divided into two levels in the range of 50-2500rpm, which can be adjusted continuously, providing users with various working environment.
• HIGH QUALITY SPINDLE: High precision spindle, high quality bearing, can improve the surface smoothness of the workpiece, high accuracy, high productivity, energy saving, having long service life.
• APPLICATION: The metal lathe can be used for metric thread, cone surface, ring groove and forming turing surface, turning end face and all kind of commonly used metric thread and so on, a wide range of application.
