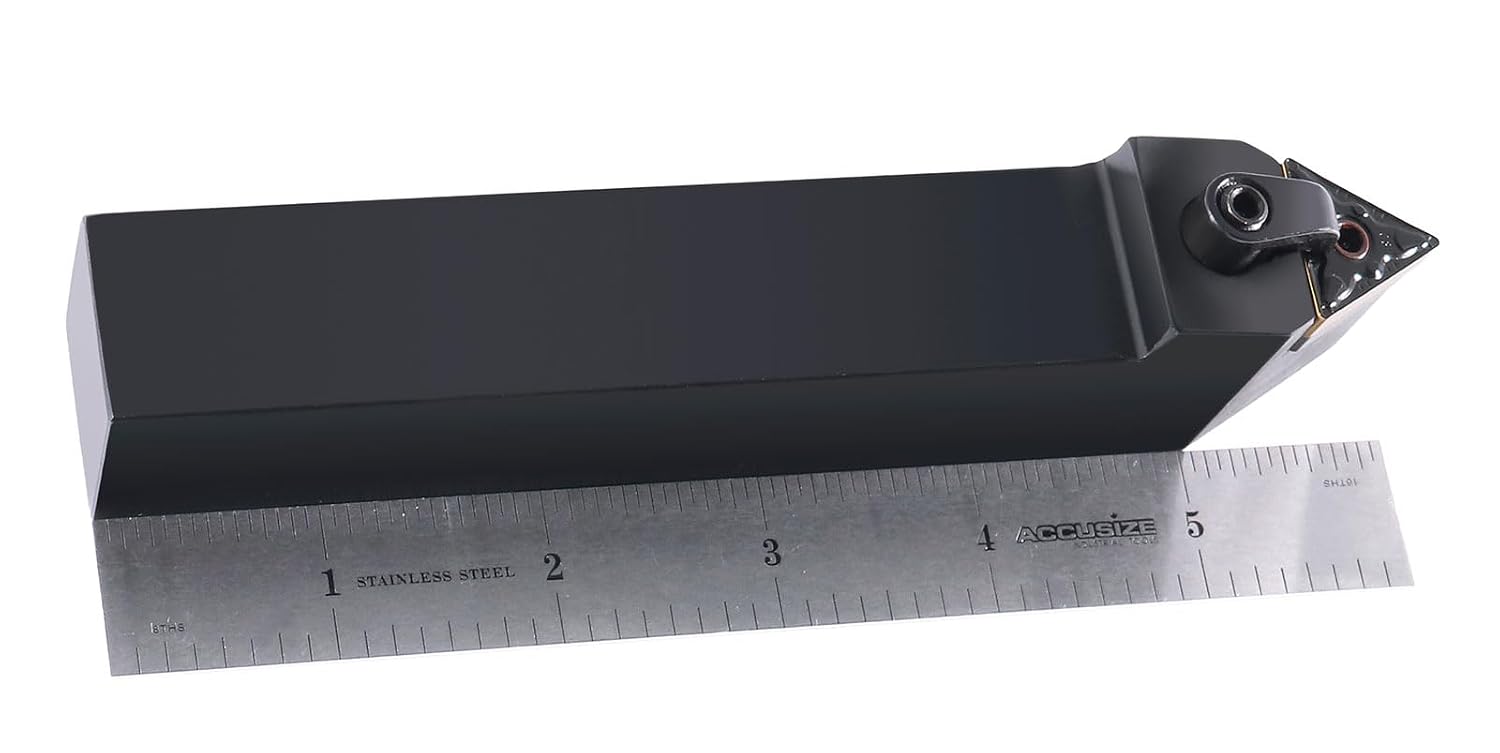

Accusize Industrial Tools MTENN-16-4D Indexable Facing Toolholder Kit, 1'' Shank, with 10 TNMG432 Inserts, 2313-5020INS

The MTENN-16-4D facing toolholder kit from Accusize Industrial Tools pairs a heavy-duty indexable toolholder with ten TNMG432 inserts to support extended production. The 1'' square shank and 6'' overall length deliver rigidity and reach, while the negative rake and 30° end cutting edge angle promote smooth chip flow. Ten CVD-coated TNMG432 triangular inserts with a 1/2'' inscribed circle and 3/16'' thickness provide six cutting edges each. A finger clamp, clamp screw, locking pins and shim are included to secure the insert and damp vibration. Designed for manual or CNC lathes machining steel, stainless steel or cast iron, this kit is suited to machinists, engineers and toolmakers seeking dependable performance.

• Designed for facing and profiling tasks on manual or CNC lathes with a negative rake and 30° end cutting edge angle for smooth chip flow.
• 1'' square shank with 6'' overall length and 1/2'' functional height provides rigidity and reach for larger tool posts and deeper cuts.
• Includes ten Carbide TNMG432 inserts with a 1/2'' inscribed circle and 3/16'' thickness; CVD coating blends TiCN, Al₂O₃ and TiN for high wear resistance and edge strength.
• Kit supplies finger clamp, clamp screw, locking pins and shim to secure the insert and damp vibration; all hardware required for immediate setup.
• Ideal for machinists, engineers and toolmakers performing facing, turning and profiling of steel, stainless steel and cast iron on manual or CNC lathes.
